884/886 Throttle Replacement

Follow the steps below to replace the Throttle on your 884-886.

     Questions? Contact Customer Service for fast & friendly help.

     Tools Needed: 3mm allen key or hex wrench, torque wrench with 3mm allen head

     Compatible Models: Flyer™ 884 and Flyer™ 886

Getting the Bike Ready for Servicing

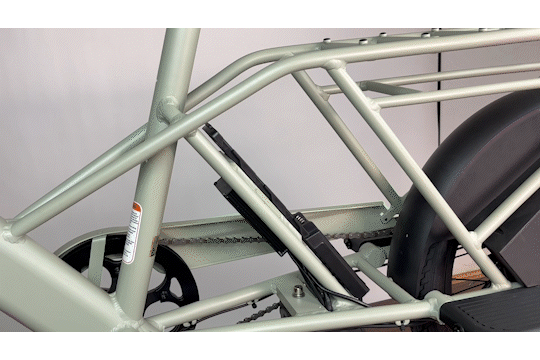

  1. Remove the battery.1 -Remobe Battery.gif

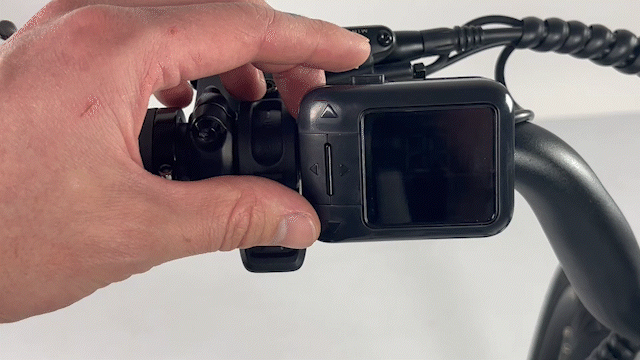

  2. Press and hold the power button the display to discharge any remaining power in the bike.


    2 - Test Power.gif


Removing the Old Throttle

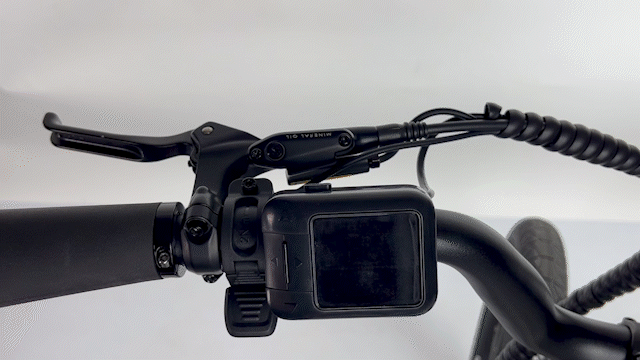

  1. Uncoil the cable wrap starting at the front brake lever.

  2. Follow the cable coming out of the throttle until you reach the throttle connection.

    3 - Unwind Cable Wrap.gif


  3. Directly pull apart the display connector. Do not twist the connector.

    4 - Disconnect Throttle.gif


  4. Use a 3mm allen wrench to remove the throttle clamp bolt. Pull throttle free from the handlebar.

    5 - Remove Throttle.gif


Installing the New Throttle

  1. Clamp the new throttle in place next to the front brake lever.

    6 - Clamp New Throttle.gif


  2. Insert the clamp bolt and tighten with a 3mm allen wrench.

    7 - Fasten Throttle.gif


  3. Reconnect the throttle wire by lining up the pins and holes and embossed arrows on both connector heads. Press firmly to join connectors, do not use any twisting motion.

    8 - Connect New Throttle.gif


  4. Rewind the cable wrap.

    9 - Rewind Cable Wrap.gif



Preparing to Ride

  1. Reinstall the battery.
    10 - Reinstall Battery.gif
  2. Fully test the bike’s function prior to riding.
