#AC822 Cell Phone Mount Assembly & Product Information

Follow the steps below to assemble your AC822 Cell Phone Mount:

Questions? Contact Customer Service for fast & friendly help.

Tools Needed: Hex Wrenches (included with phone mount)

Compatible Models: All FLYER E-Bikes

ASSEMBLY VIDEO

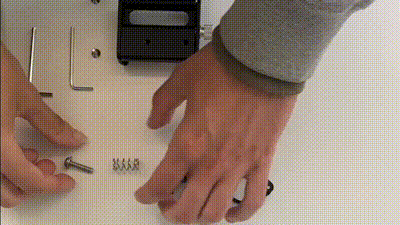

Start by threading the longest bolt through the spring into the T-shaped cup and fasten into the ring that will clamp onto the handlebars.

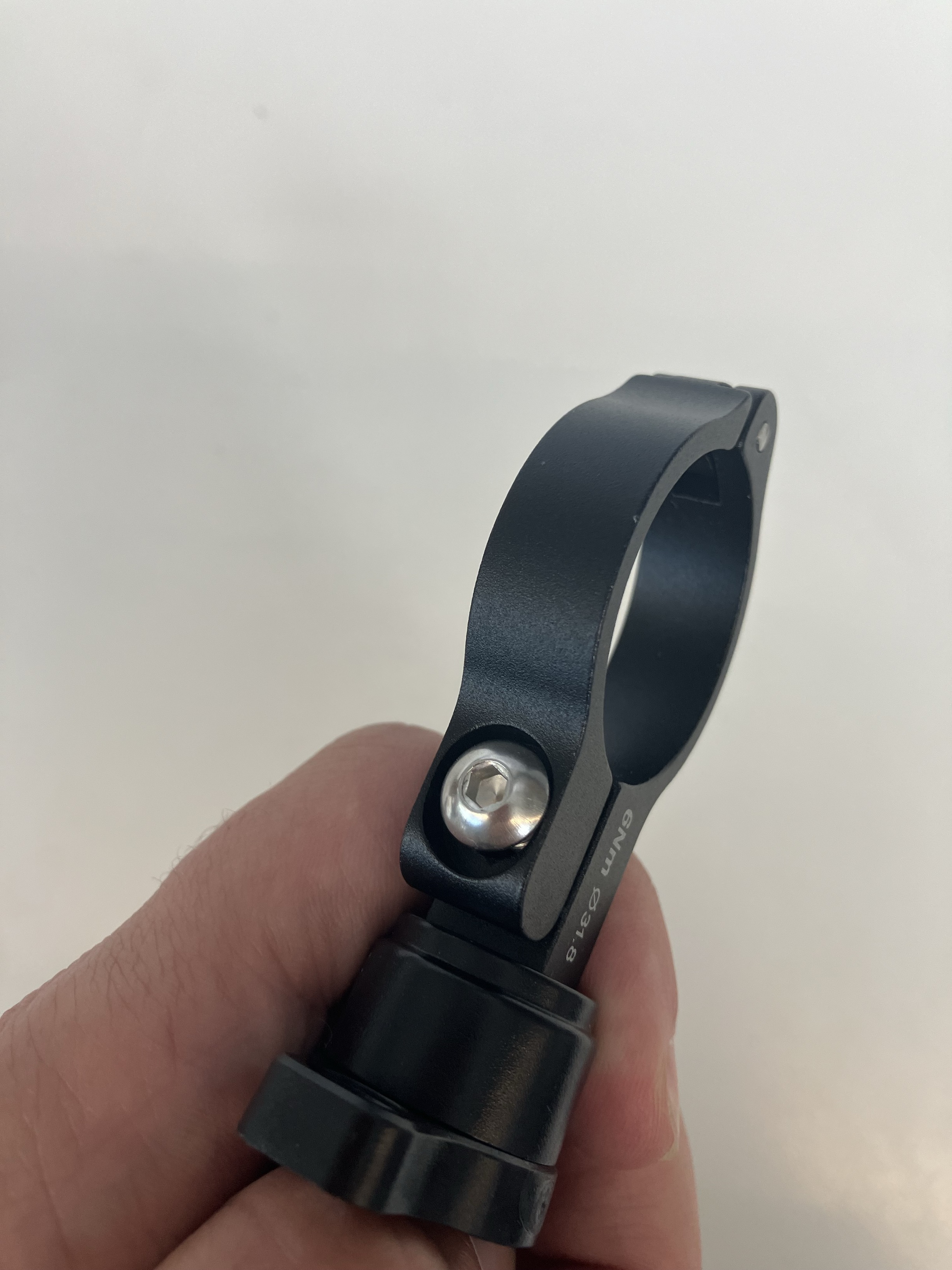

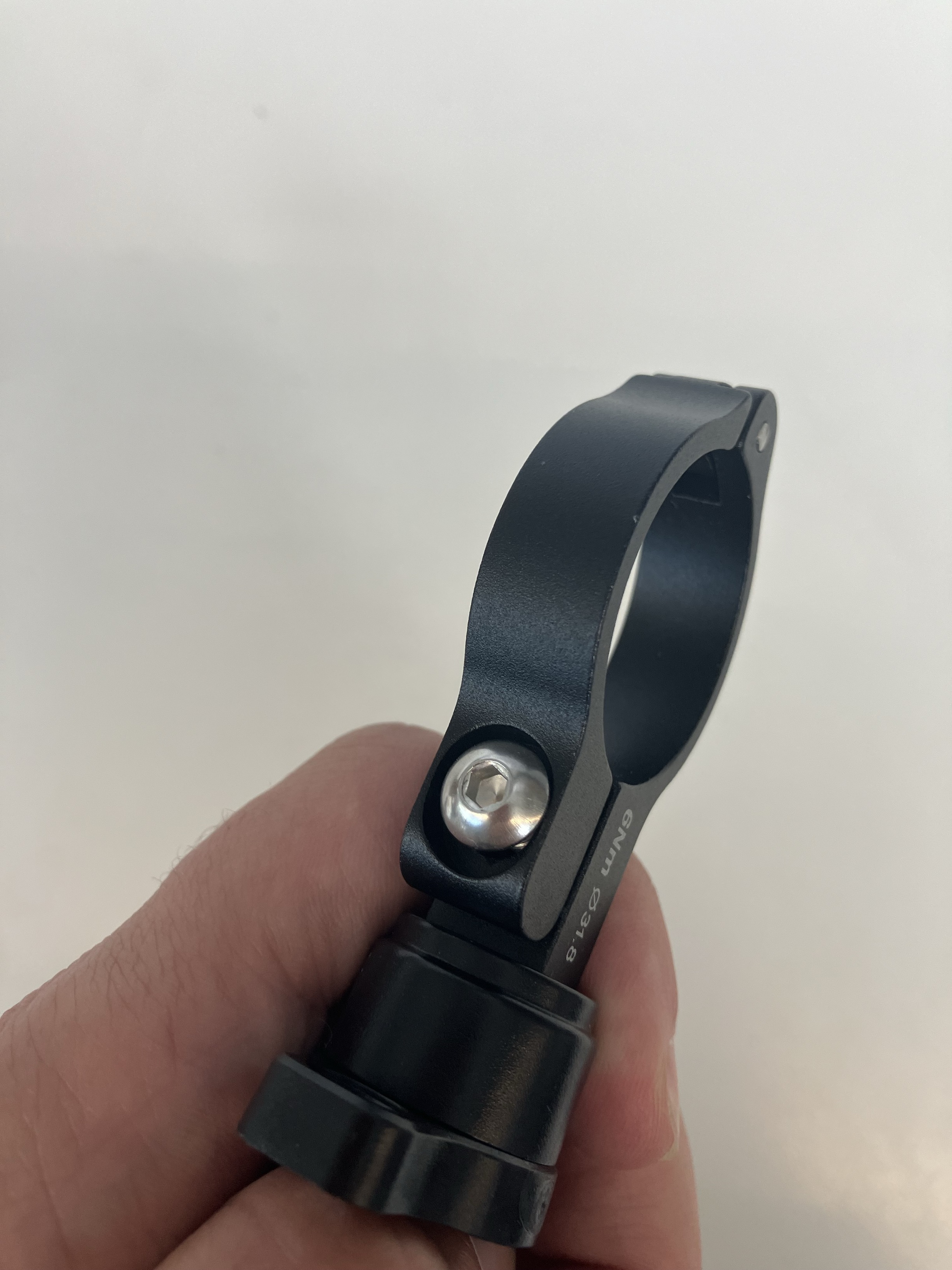

The bolt that you fastened can be loosened if you need to rotate the angle of the phone mount.

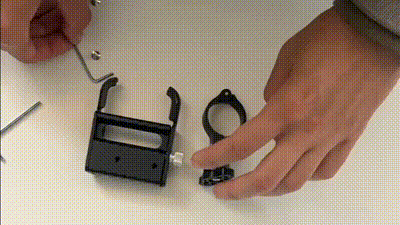

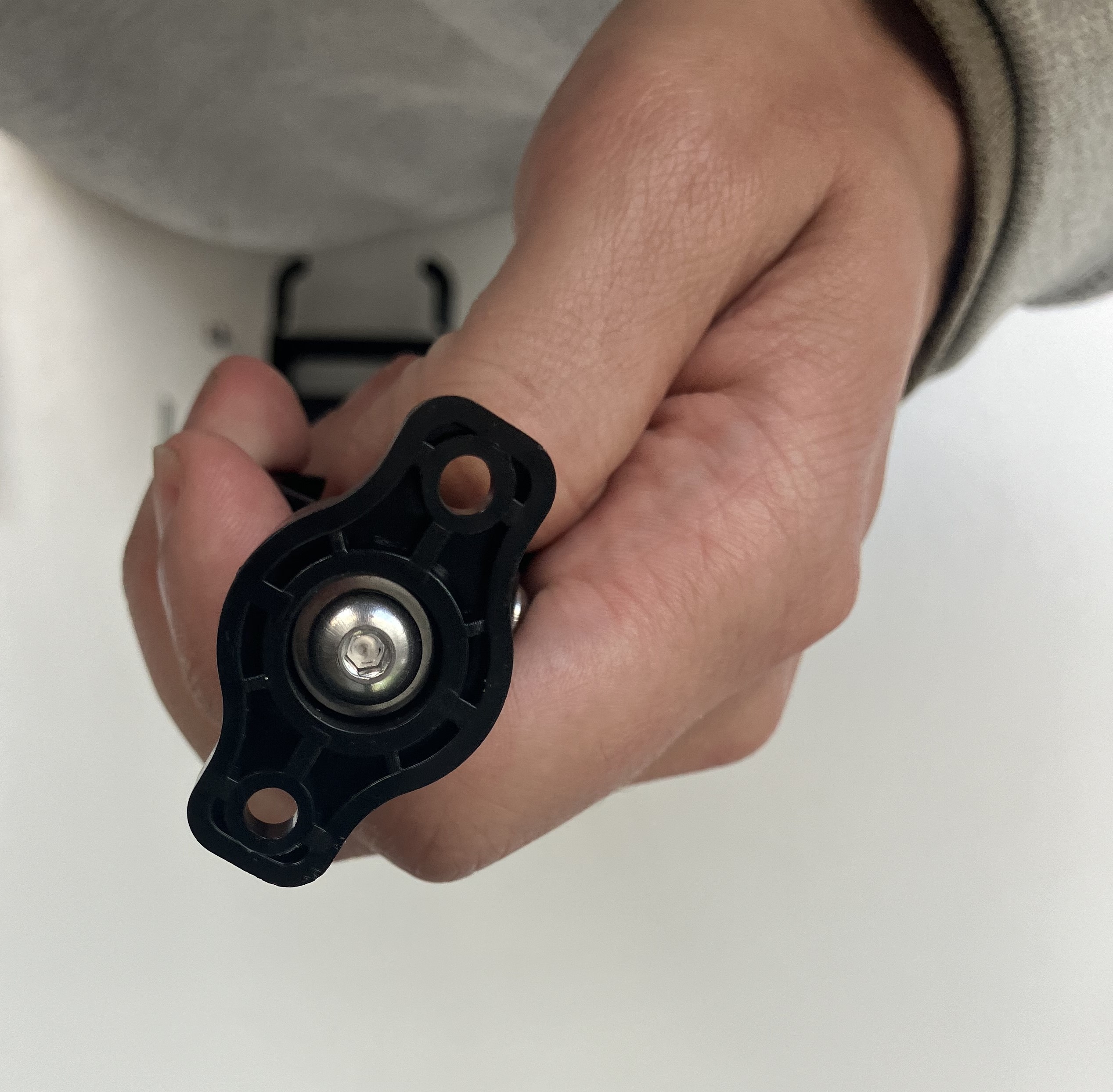

Secure the face of the phone mount to the T-shaped cup using the two smaller bolts on the back of it.
From there, fasten the ring around the handlebars using the following bolt.

Does your new product have a missing or damaged part? Submit a request for a replacement part under warranty here.
