#881 Rear Rack Replacement

Follow the steps below to swap the motor controller on your 881

     Questions? Contact Customer Service for fast & friendly help.

     Tools Needed: 4mm allen wrench, Phillips screwdriver

     Compatible Models: Flyer™ 881



Getting the Bike Ready for Servicing

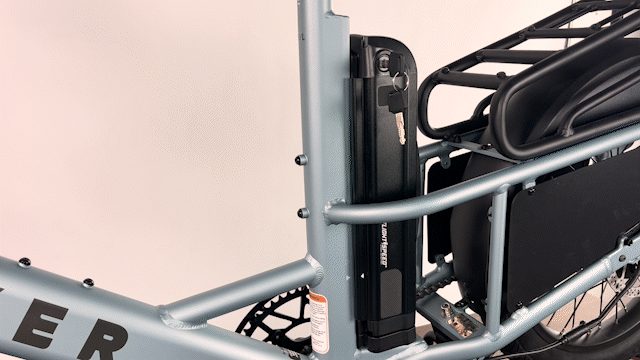

  1. Remove the battery.

    1 - Remove Battery.gif

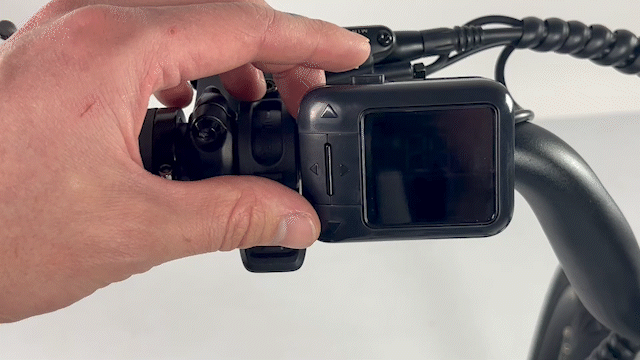

  2. Press and hold the power button the display to discharge any remaining power in the bike.


    2 - Test Power.gif



Removing the Taillight

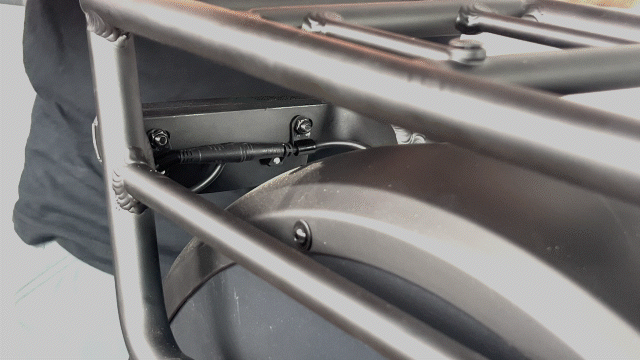

  1. Use an 8mm or adjustable wrench to remove the 2 nuts secure the taillight to the rear rack

    2 - Remove Taillight Nuts.gif


  2. Remove the taillight from the rear rack.

    3 - Remove Taillight.gif


  3. Remove the clip securing the taillight to the rear rack.
    4 - Remove Cable Clip.gif



Removing the Rear Rack

  1. To remove the 4 bolts securing the rear rack to the frame, use an 8mm or adjustable wrench to hold the nut capturing each bolt while loosening the bolts with a 4mm allen wrench.

    6 - Remove Rack Bolts.gif


  2. Pull the rear rack free from the bike.

    7 - Remove Rear Rack.gif



Installing the New Rear Rack

  1. Align the 4 tabs on the bottom of the rack with the four holes on the frame.

    8 - Install New Rack.gif


  2. To fasten the new rack in place, insert a bolt through each of the 4 tab locations. Capture the end of each bolt with a locknut.
  3. Using a 8mm or adjustable wrench, hold the locknuts in place while tightening the bolt with a 4mm allen wrench.

    9 - Fasten Bolts, Left.gif
    10 - Fasten Bolts, Right.gif


Reinstalling the Taillight

  1. Align the 2 bolts on the back of the taillight with the 2 holes on the rear rack.

    12  - Reinstall Taillight.gif"


  2. Slide the wire strain relief over the expose bolt on both sides of the taillight.
  3. Capture the end of each bolt with a nut. Hand thread them in place.

    13 - Hand Fasten Nuts.gif


  4. Tighten the nuts using an 8mm or adjustable wrench.

    14 - Tighen Taillight Nuts.gif


  5. Press the clip over the cable to secure it to the frame.

    15 - Clip Taillight Cable.gif

Preparing to Ride

  1. Reinstall the battery.


    17 - Reinstall Battery.gif


  2. Fully test the bike’s function prior to riding.
