#881 Battery Dock Replacement

Follow the steps below to swap the battery dock on your 881

     Questions? Contact Customer Service for fast & friendly help.

     Tools Needed: 4mm allen wrench, Phillips screwdriver

     Compatible Models: Flyer™ 881

Getting the Bike Ready for Servicing

  1. Remove the battery.

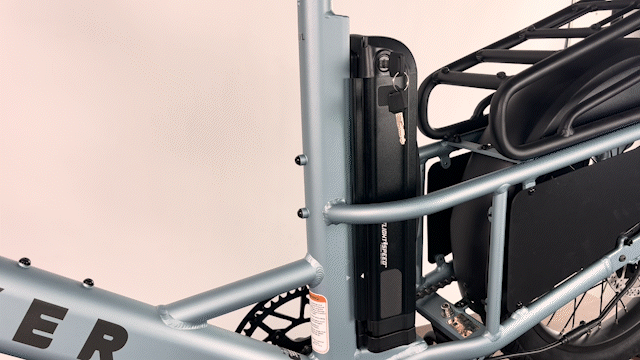

    1 - Remove Battery.gif


  2. Press and hold the power button the display to discharge any remaining power in the bike.

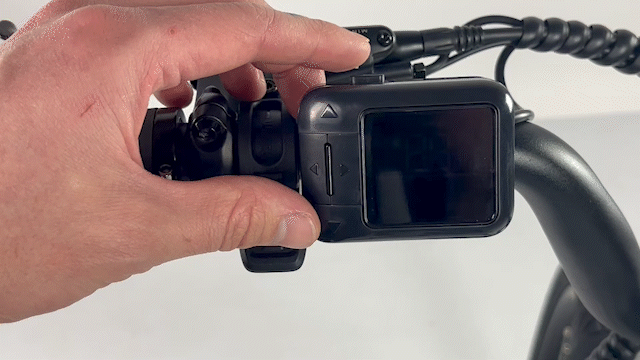

    2 - Test Power.gif



Removing the Old Battery Dock

  1. Use a T25 Torx wrench to remove the 3 bolts securing the battery dock to the seat tube.

    2 - Remove Dock Bolts.gif


  2. Fold the kickstand up. Have another person hold the bike for kickstand removal.
  3. Use an 8mm allen wrench to remove the kickstand.

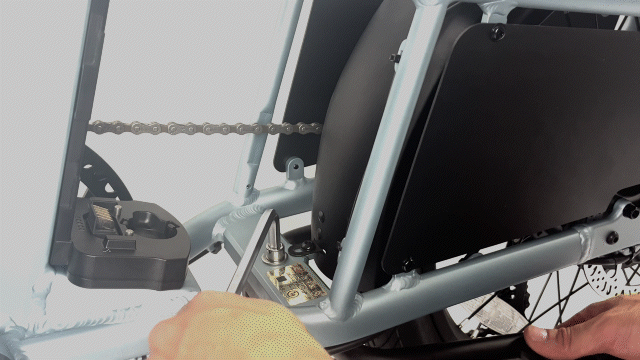

    2 - Remove Kickstand.gif


  4. Flip the bike upside down with the help of another person.
  5. Use a screwdriver to remove the PCM bolt near the rear wheel.

    4 - Remove PCM Bolt.gif

  6. Disconnect the battery dock from the PCM. To disconnect the cable, push your thumbs together and pull the connectors apart.

    5 - Disconnect Dock Cable.gif


  7. Move the PCM to gain access to the bolt securing the bottom of the battery dock.

    6 - Move PCM.gif


  8. Use a T25 Torx wrench to remove the bottom bolt.

    7 - Remove Bottom Bolt.gif


  9. Set the bike back upright.
  10. Pull the battery dock free from the bike.

    8 - Remove Dock.gif

Installing the New Battery Dock

  1. To install the new dock, start by routing the cable through the opening just behind the seat tube.
  2. Align the 3 slots in the center of the battery dock with the 3 holes on the back of the seat tube.

    8-2 Install New Dock.gif


  3. Fasten the dock in place with 3 bolts using a T25 Torx wrench.

    9 - Fasten New Dock.gif


  4. Flip the bike back upside down to secure the bottom bolt for the battery dock.

    10 - Secure Bottom Bolt.gif


  5. Reinstall the kickstand.

    11 - Reinstall Kickstand.gif


  6. Fully tighten the kickstand bolt using the 8mm allen wrench.

    12 - Secure Kickstand.gif


Preparing to Ride

  1. Reinstall the battery.


    17 - Reinstall Battery.gif


  2. Fully test the bike’s function prior to riding.
